Single Sided Prototype Fr4 High Tg Electronic Pcb Assembly
FASTPCBA has the capability to manufacture pcb ranging from basic single sided boards up to 48 layer mtilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components sourcing and function testing.
The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 2004: to provide high quality, technically advanced products within the customer’s timescales.
This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.
PCB Capacities and Technical Specification
| Order Quantity | NO MOQ (1pcs) |
| Layer | 1, 2, 4, 6, up to 48 layer |
| Material | FR-4, High Tg, Isola, Aluminum, Rogers, etc |
| PCB type | Rigid PCB, flexible PCB, Rigid-flexible PCB |
| Shape | Rectangular, round, slots, cutouts, complex, irregular |
| Max PCB dimensions | 700mm*460mm |
| Thickness | 0.2~4.0mm, Flex 0.01~0.25'' |
| Thickness tolerance | ± 10% |
| Copper thickness | 0.5-6 oz |
| Copper thickness tolerance | ± 0.25oz |
| Surface finish | HASL, LF HASL, Imm Gold, Imm Silver, OSP etc |
| Solder mask | Green, red, white, yellow, blue, black, orange, purple |
| Silk screen | White, black... |
| Silk screen min line width | 0.006'' or 0.15mm |
| Min drill hole diameter | 0.01'', 0.1mm or 10 mil |
| Min trace/gap | 0.075mm or 3mil |
| PCB cutting | Shear, V-score, tab-routed |
PCBA Capabilities
| Turnkey PCBA | PCB+components sourcing+assembly+package |
| Assembly details | SMT and Thru-hole, ISO SMT and DIP lines |
| Lead Time | Prototype : 15 work days. Mass order : 20~25 work days |
| Testing on products | Testing jig/mold , X-ray Inspection, AOI Test, Functional test |
| Quantity | Min quantity : 1pcs. Prototype, small order, mass order, all OK |
| Files needed | PCB : Gerber files(CAM, PCB, PCBDOC)
Components : Bill of Materials(BOM list)
Assembly : Pick-N-Place file |
| PCB Panel Size | Min size : 0.25*0.25 inches(6*6mm)
Max size : 1200*600mm |
| Components details | Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement |
| Component package | Cut Tape, Tube, Reels, Loose Parts |
| PCB+ assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |

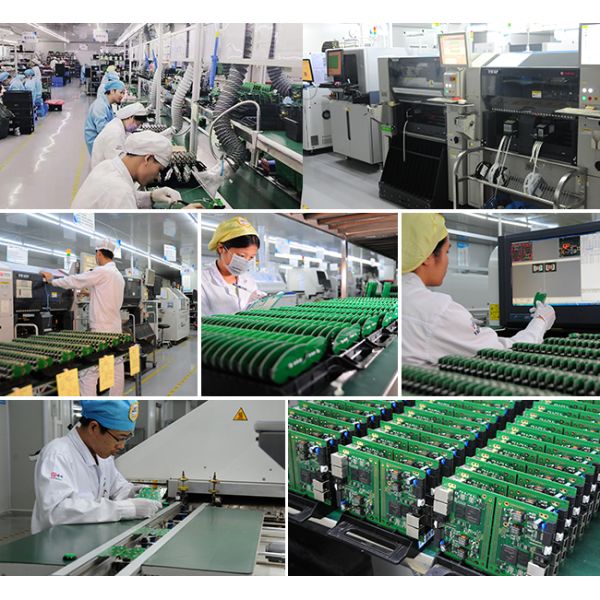

Advanced Equipment
FASTPCBA has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.
FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO9001, ISO14001, ISO13485, IATF16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
